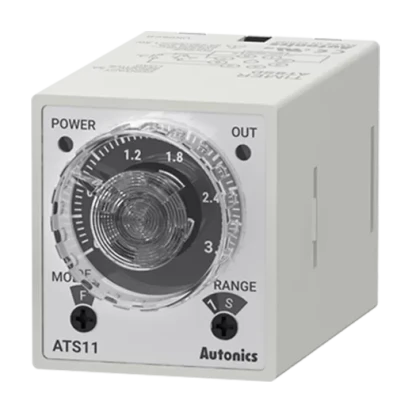

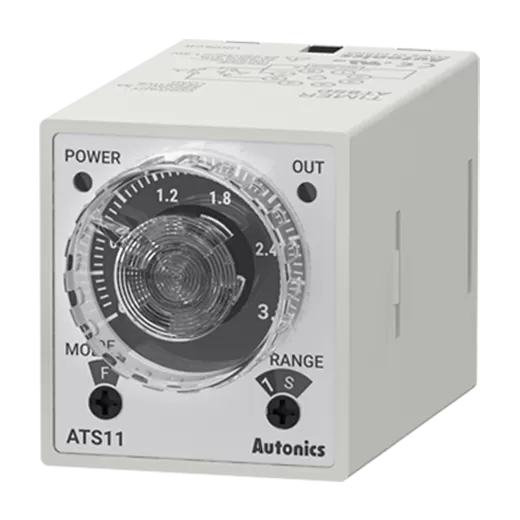

Autonics ATS Series ATS11-23E

List Price:

$32.00

/each

Product Description

Autonics Timers, model ATS11-23E, from the ATS Series product line.

Operation method: Time setting
Output Operation: SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
Time operation: SIGNAL ON START
Terminal: 11-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC @(=)
Setting range: 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
Signal Input Method: No-voltage input(NPN)
Control output: Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
Protection structure: -
Min. signal Width: START, INHIBIT, RESET: [No-voltage input] - Short-circuit impedance: Max. 1kΩ,</br>Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 95g (approx. 70g)
