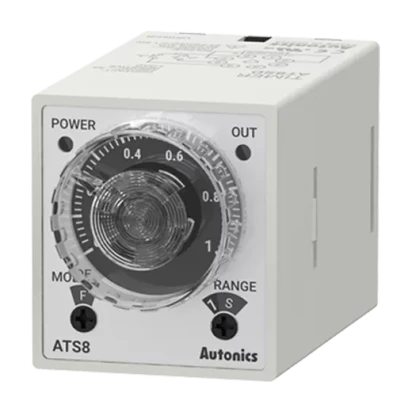

Autonics ATS Series ATS8-21

List Price:

$32.00

/each

Product Description

Autonics Timers, model ATS8-21, from the ATS Series product line.

Operation method: Time setting
Output Operation: POWER ON DELAY, FLICKER, INTERVAL
Time operation: POWER ON START
Terminal: 8-pin plug
Power supply: 24VAC~ 50/60Hz, 24VDC @(=)
Setting range: 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
Signal Input Method: -
Control output: Time-limit DPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
Protection structure: -
Min. signal Width: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 95g (approx. 70g)
