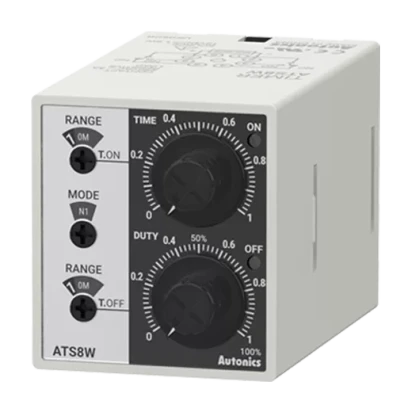

Autonics ATS8W/ATS11W Series ATS8W-41

List Price:

$41.00

/each

Product Description

Autonics Timers, model ATS8W-41, from the ATS8W/ATS11W Series product line.

Operation method: Time setting
Output Operation: FLICKER
Time operation: POWER ON START
Terminal: 8-pin plug
Power supply: 100-240VAC~50/60Hz, 24-240VDC @(=)
Setting range: 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
Signal Input Method: -
Control output: Time-limit DPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
Protection structure: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 100g (approx. 75g)

Write a Review

Brand:

Autonics Timers, model ATS8W-41, from the ATS8W/ATS11W Series product line.

Operation method: Time setting
Output Operation: FLICKER
Time operation: POWER ON START
Terminal: 8-pin plug
Power supply: 100-240VAC~50/60Hz, 24-240VDC @(=)
Setting range: 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
Signal Input Method: -
Control output: Time-limit DPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
Protection structure: -
Accessories: Bracket
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85%RH
Weight: Approx. 100g (approx. 75g)
