Autonics BEN Series BEN10M-TDT

List Price:

$79.00

/each

Product Description

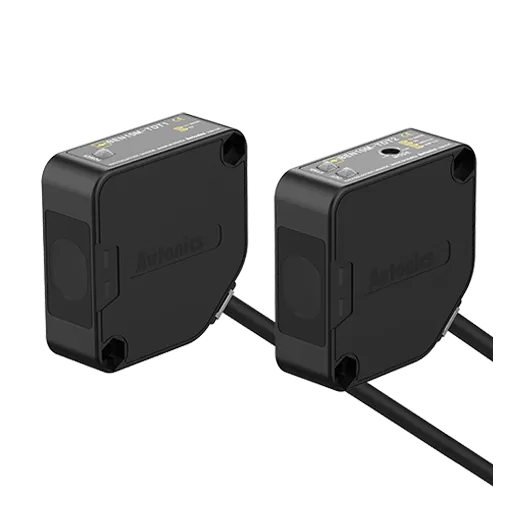

Autonics Photoelectric Sensors, model BEN10M-TDT, from the BEN Series product line.

Sensing type: Through-beam type
Sensing distance: 10m
Sensing target: Opaque material of min. Ø16mm
Light source: Infrared LED(850nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Emitter/Receiver: Max. 50mA
Sensitivity adjustment: -
Operation mode: Light ON/Dark ON(set by switch)
Control output: NPN, PNP open collector simultaneous output
Timer function: -
Connection type: Cable type(Ø5, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -20 to 65℃, storage: -25 to 70℃
Protection structure: IP50
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): -
Material: Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden
Accessories_Individual: -
Accessories_Common: Adjuster driver, Fixing bracket, Bolts, Nuts
Weight: Approx. 342g
