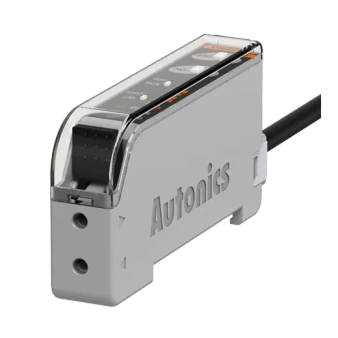

Autonics Fiber Optic Sensors, model BF4R-E, from the BF4 Series product line.
Specifications
- Type: External synchronization input type
- Display method: -
- Light source: Red LED(660nm)
- Response time: Frequency 1: Max. 0.5ms, Frequency 2: Max. 0.7ms
- Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
- Current consumption: Max. 45mA
- Operation mode: Light ON/Dark ON(set by ON/OFF button)
- Control output: NPN open collector
- Timer function: -
- Sensitivity adjustment: Manual
- Communication: -
- Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
- Environment_Ambient temperature: -10 to 50℃, storage: -20 to 70℃
- Protection structure: -
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
- Mutual interference prevention: Built-in differential frequency mode(frequency 1(normal mode): max. 0.5ms, frequency 2: max. 0.7ms)
- Self-diagnosis output: ON state under unstable sensing(when the target stays for 300ms in unstable level),</br>ON state when control output is short-circuited</br>•Load voltage: Max. 30VDC @(=)</br>•Load current: Max. 50mA</br>•Residual voltage - Max. 1V(load current: 50mA), Ma
- Input of stop transmission function: Built-in
- External synchronization function: Built-in(gate/trigger)
- Material: Case: Heat-resistance acrylonitrile butadiene styrene, Cover: Polycarbonate
- Cable specification: Ø4mm, 6-wire, 2m(AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm)
- Accessories: Fixing bracket, Bolts, Nuts
- Weight: Approx. 120g(approx. 65g)
