Autonics BFC Series BFC-N

List Price:

$171.00

/each

Product Description

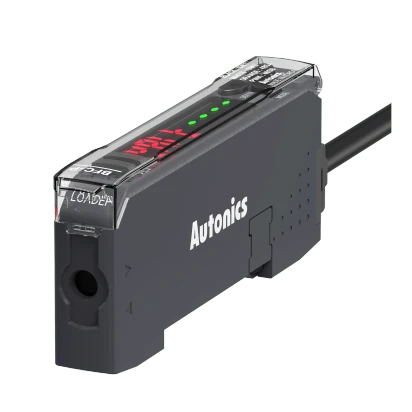

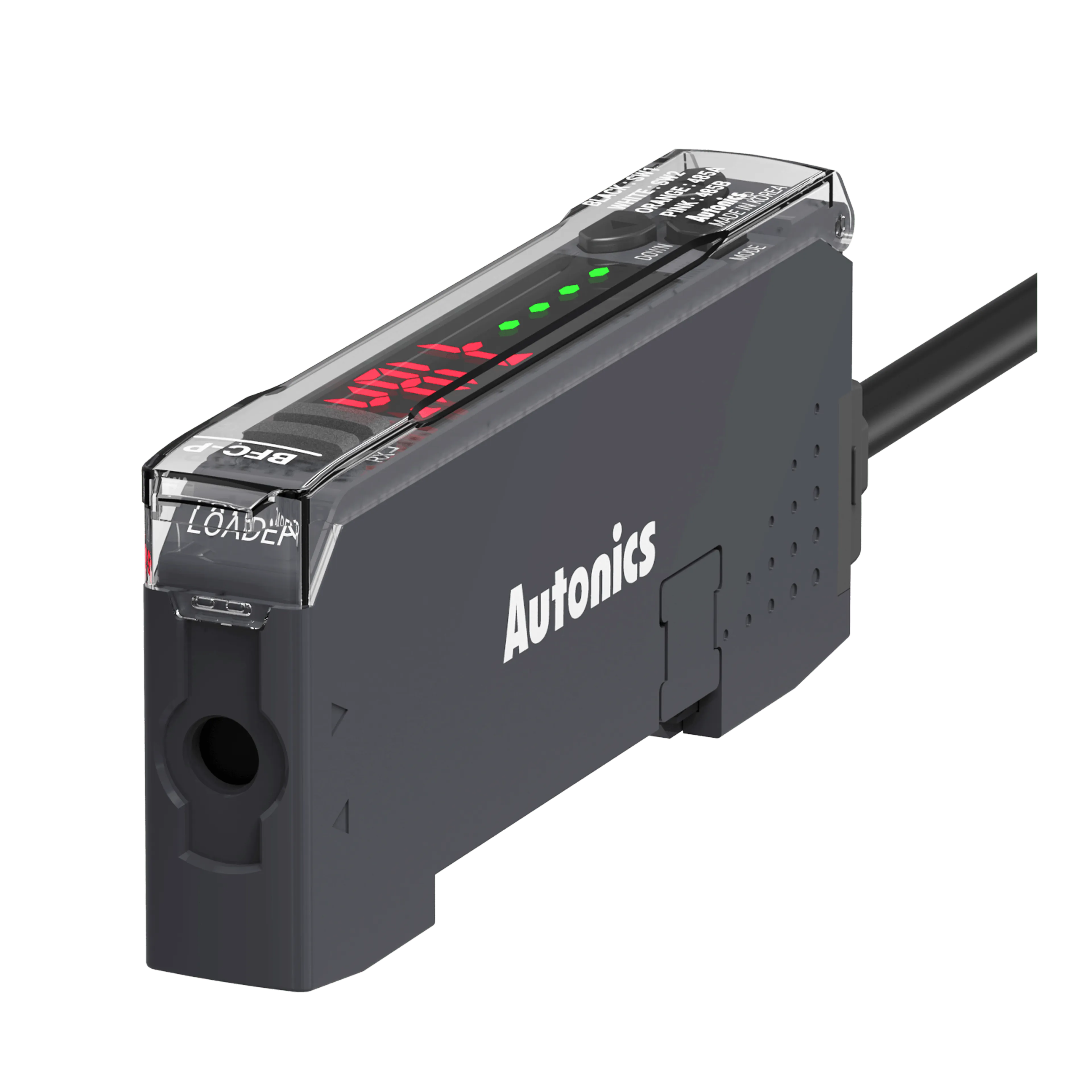

Autonics Fiber Optic Sensors, model BFC-N, from the BFC Series product line.

Type: communication converter for fiber optic amplifier
Display method: 4-digit 7-segment LED
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Communication: RS485 communication, Serial communication, SW input
Communication speed: 1200, 2400, 4800, 9600, 19200, 38400bps
Input: NPN solid-state
Application: BFC Series makes for 32 units of fi ber optic amplifi er, BF5 Series, to connect.BFC Series helps for BF5 Series to execute all functions, to setparameters, to monitor real-time data(received light level, output status)via external device(P
Protection structure: IP40
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Material: Case: Polybutylene terephthalate, Cover: Polycarbonate
Accessories: Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector
Weight: Approx. 15g
