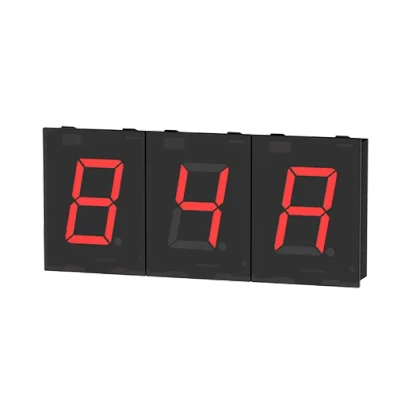

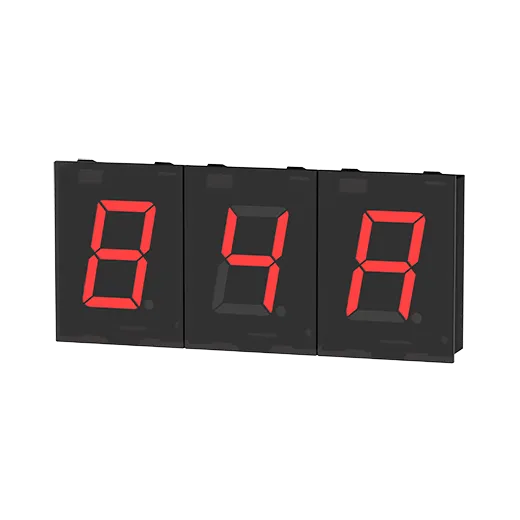

Autonics D1SC-N Series D1SC-N

List Price:

$101.00

/each

Product Description

Autonics Display Units, model D1SC-N, from the D1SC-N Series product line.

Input method: Serial input or Parallel(static/dynamic parallel) input
Input logic: Positive logic(PNP), Negative logic(NPN)
Display method: 7-segment LED
Display color: Red
Display characters: Decimal: 0 to 9, dot, minus</br>Hexadecimal: 0 to 9, A to F, dot, minus</br>(set by switch)
Character size: W37×H57mm
Current consumption: Max. 70mA
Max. Connections: ∞
Power supply: 12-24VDC @(=)
Environment_Ambient temperature: 0 to 60℃, storage: -10 to 85℃
Environment_Ambient humidity: 35 to 85%RH
Accessories: Housing[5264-10], Terminal[5263(PBT)], Sub-PCB for multi-stage connection
Weight: Approx. 100g
