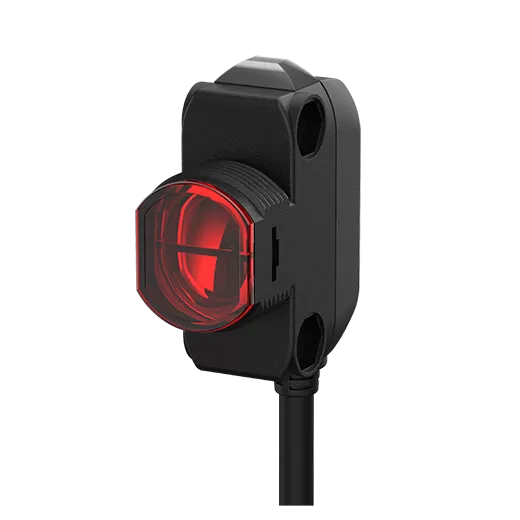

Autonics BH Series BH4M-PDT

List Price:

$84.00

/each

Product Description

Autonics Photoelectric Sensors, model BH4M-PDT, from the BH Series product line.

Sensing type: Retroreflective type(built-in polarizing filter)
Sensing distance: 4m(MS-2A)
Sensing target: Opaque material of min. Ø75mm
Light source: Red LED(660nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by switch)
Control output: NPN, PNP open collector simultaneous output
Timer function: -
Connection type: Cable type(Ø4, 2.1m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 55℃, storage: -40 to 70℃
Protection structure: IP67
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): -
Material: Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic
Accessories_Individual: Reflector(MS-2A)
Accessories_Common: Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut
Weight: Approx. 140g(Approx. 60g)
