Autonics BJR Series BJR100-DDT

List Price:

$175.00

/each

Product Description

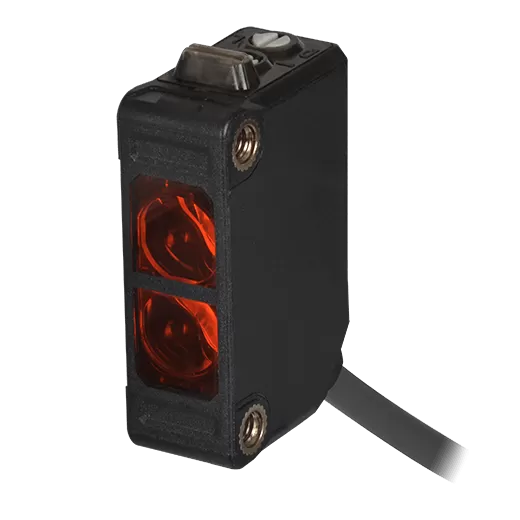

Autonics Photoelectric Sensors, model BJR100-DDT, from the BJR Series product line.

Oil resistant/oil proof: Oil resistant type
Sensing type: Diffuse reflective type
Sensing distance: 100mm
Sensing target: Opaque, Translucent material
Light source: Infrared LED(850nm)
Response time: Max. 1ms
Power supply: 10-30VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by switch)
Control output: NPN open collector
Timer function: -
Connection type: Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)</br>(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 60℃, storage: -40 to 70℃
Protection structure: IP67 (IEC standard), IP67G (JEM standard)
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% at rated sensing distance
Material: Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common: Mounting bracket, M3 bolt: 2, adjustment screwdriver
Accessories_Individual: -
Weight: Approx. 100g(approx. 50g)
