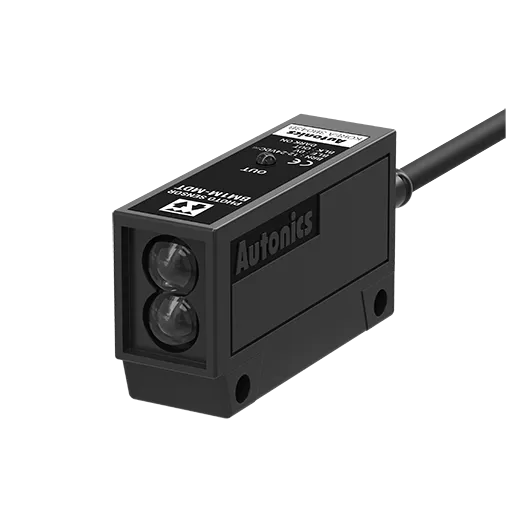

Autonics BM Series BM1M-MDT

List Price:

$66.00

/each

Product Description

Autonics Photoelectric Sensors, model BM1M-MDT, from the BM Series product line.

Sensing type: Retroreflective type
Sensing distance: 1m(MS-2)
Sensing target: Opaque material of min. Ø60mm
Light source: Infrared LED(940nm)
Response time: Max. 3ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 40mA
Sensitivity adjustment: Fixed
Operation mode: Dark ON
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø4, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -10 to 60℃, storage: -25 to 70℃
Protection structure: -
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): -
Material: Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual: Reflector(MS-2)
Accessories_Common: Fixing bracket, Bolts, Nuts
Weight: Approx. 105g
