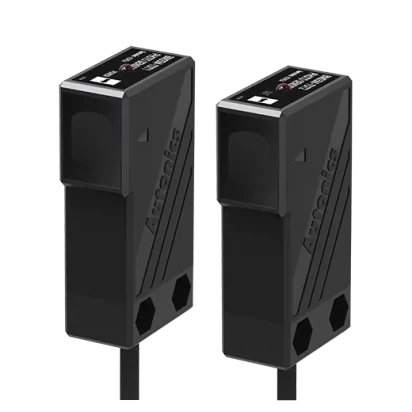

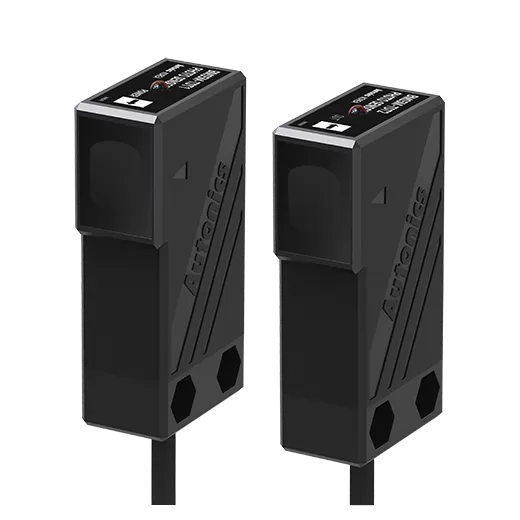

Autonics BMS Series BMS5M-TDT-P

List Price:

$79.00

/each

Product Description

Autonics Photoelectric Sensors, model BMS5M-TDT-P, from the BMS Series product line.

Sensing type: Through-beam type
Sensing distance: 5m
Sensing target: Opaque material of min. Ø10mm
Light source: Infrared LED(940nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Emitter/Receiver: Max. 50mA
Sensitivity adjustment: -
Operation mode: Light ON/Dark ON(set by control wire)
Control output: PNP open collector
Timer function: -
Connection type: Cable type(Ø5, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -10 to 60℃, storage: -25 to 70℃
Protection structure: -
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): -
Material: Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual: -
Accessories_Common: Fixing bracket, Bolts, Nuts
Weight: Approx. 180g
