Autonics BPS Series BPS3M-TDTL-P

List Price:

$91.00

/each

Product Description

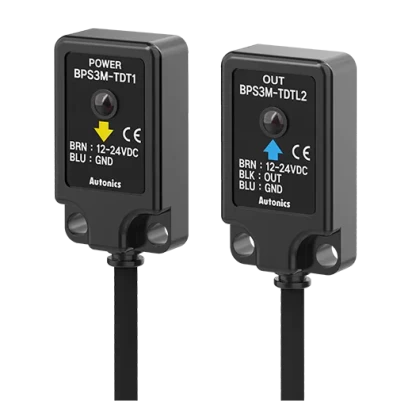

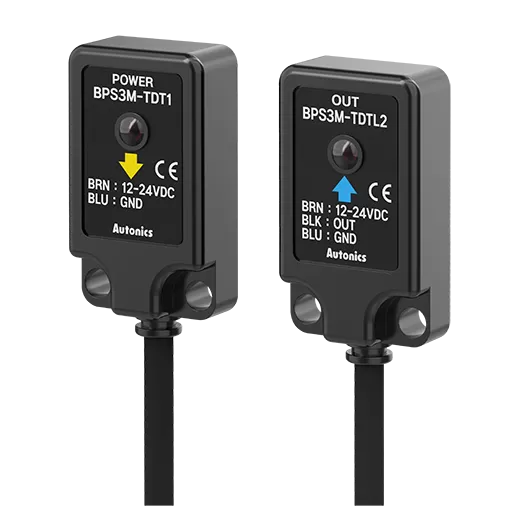

Autonics Photoelectric Sensors, model BPS3M-TDTL-P, from the BPS Series product line.

Sensing type: Through-beam type
Sensing distance: 3m
Sensing target: Opaque material of min. Ø5mm
Light source: Infrared LED(850nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Emitter/Receiver: Max. 20mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON
Control output: PNP open collector
Timer function: -
Connection type: Cable type(Ø3, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 65℃, storage: -25 to 70℃
Protection structure: IP67
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Material: Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Weight: Approx. 66g
