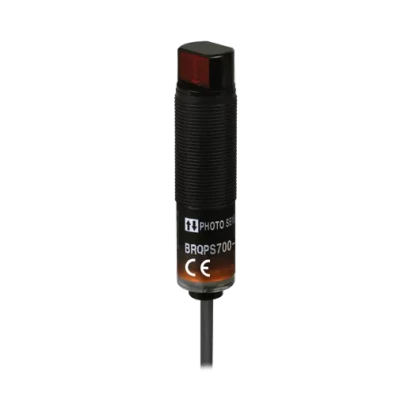

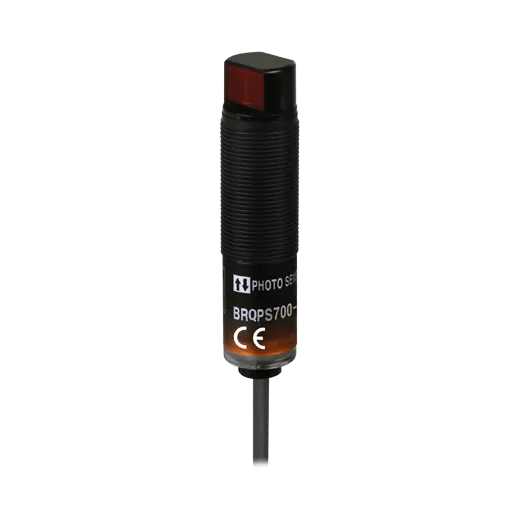

Autonics BRQ Series BRQPS700-DDTA

List Price:

$101.00

/each

Product Description

Autonics Photoelectric Sensors, model BRQPS700-DDTA, from the BRQ Series product line.

Sensing type: Diffuse reflective type
Sensing distance: 700mm
Sensing target: Opaque, Translucent material
Light source: Red LED(660nm)
Response time: Max. 1ms
Power supply: 10-30VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by control wire)
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø4, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 60℃, storage: -30 to 70℃
Protection structure: IP67(IEC standard)
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% at rated sensing distance
Material: Case: Polycarbonate</br>Lens, Lens cover: Polymethyl Methacrylate Acrylic
Weight: Approx. 130g(approx. 70g)

Write a Review

Brand:

Autonics Photoelectric Sensors, model BRQPS700-DDTA, from the BRQ Series product line.

Sensing type: Diffuse reflective type
Sensing distance: 700mm
Sensing target: Opaque, Translucent material
Light source: Red LED(660nm)
Response time: Max. 1ms
Power supply: 10-30VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by control wire)
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø4, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 60℃, storage: -30 to 70℃
Protection structure: IP67(IEC standard)
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% at rated sensing distance
Material: Case: Polycarbonate</br>Lens, Lens cover: Polymethyl Methacrylate Acrylic
Weight: Approx. 130g(approx. 70g)
