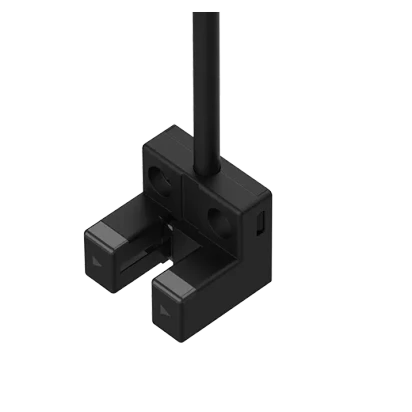

Autonics BS3 Series BS3-L1M-P

List Price:

$36.00

/each

Product Description

Autonics Photomicro Sensors, model BS3-L1M-P, from the BS3 Series product line.

Specifications

Sensing type: Through-beam type
Sensing distance: 5mm
Sensing target: Opaque
Min. sensing target: ≥ 0.8 mm × 1.8 mm
Hysteresis(distance): ≤0.05mm
Response time: Light ON: Max. 20㎲, Dark ON: Max. 100㎲
Response frequency: 2kHz
Light source: Infrared LED
Peak emission wavelength: 940nm
Operation mode: Light ON/Dark ON(set by control wire)
Indicator: Operation indicator (red LED)
Weight: Approx. 50g
Power supply: 5-24VDC @(=) ±10%(ripple P-P : max. 10%)
Current consumption: Max. 15mA
Control output: PNP open collector
Load voltage: ≤ 24VDC@(=)
Load current: Max. 50mA
Residual voltage: NPN: ≤1.2VDC@(=), PNP: ≤ 1.2VDC@(=)
Protection circuit: Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
Insulation resistance: ≥20 MΩ (250 VDC@(=) megger)
Noise immunity: The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC@(=)
Dielectric strength: 1,000VAC 50/60Hz for 1 minute
Vibration: 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours
Shock: 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times
Environment_Ambient illumination: Fluorescent lamp: Max. 1,000lx(received illumination)
Environment_Ambient temperature: -20 to 55℃, storage : -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP50 (IEC standard)
Connection: Cable type
Connection type: Ø2.5mm, 4-wire, 1m
Core: AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm
Material: Case: PBT, Sensing part: PC

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Photomicro Sensors, model BS3-L1M-P, from the BS3 Series product line.

Specifications

Sensing type: Through-beam type
Sensing distance: 5mm
Sensing target: Opaque
Min. sensing target: ≥ 0.8 mm × 1.8 mm
Hysteresis(distance): ≤0.05mm
Response time: Light ON: Max. 20㎲, Dark ON: Max. 100㎲
Response frequency: 2kHz
Light source: Infrared LED
Peak emission wavelength: 940nm
Operation mode: Light ON/Dark ON(set by control wire)
Indicator: Operation indicator (red LED)
Weight: Approx. 50g
Power supply: 5-24VDC @(=) ±10%(ripple P-P : max. 10%)
Current consumption: Max. 15mA
Control output: PNP open collector
Load voltage: ≤ 24VDC@(=)
Load current: Max. 50mA
Residual voltage: NPN: ≤1.2VDC@(=), PNP: ≤ 1.2VDC@(=)
Protection circuit: Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
Insulation resistance: ≥20 MΩ (250 VDC@(=) megger)
Noise immunity: The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC@(=)
Dielectric strength: 1,000VAC 50/60Hz for 1 minute
Vibration: 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours
Shock: 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times
Environment_Ambient illumination: Fluorescent lamp: Max. 1,000lx(received illumination)
Environment_Ambient temperature: -20 to 55℃, storage : -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP50 (IEC standard)
Connection: Cable type
Connection type: Ø2.5mm, 4-wire, 1m
Core: AWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm
Material: Case: PBT, Sensing part: PC
