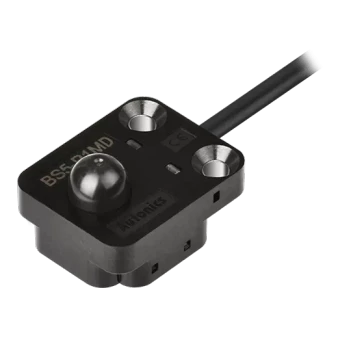

Autonics BS5-P Series BS5-P1MD

List Price:

$81.00

/each

Product Description

Autonics Photomicro Sensors, model BS5-P1MD, from the BS5-P Series product line.

Operation method: Push Button Type
Button operation_Stop position: 5.0±0.4mm
Button operation_Output switching position: 4.0±0.5mm
Button operation_Operation limit position: Max. 0mm
Light source: Infrared LED(940nm)
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 35mA
Operation load: Max. 3N(Max. 0.3kgf)
Operation mode: Dark ON(output ON when button ispushed)
Control output: NPN open collector
Connection type: Cable type(Ø3, 1m)
Environment_Ambient illumination: Fluorescent lamp: Max. 1,000lx(received illumination)
Environment_Ambient temperature: -20 to 55℃, storage: -25 to 70℃
Protection structure: IP40
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
External input_Response: Max. 1ms
Material: Case: Polycarbonate + Glass fiber, Button: Polyoxymethylene, Sleeve: SUS304(steel use Stainless 304)
Weight: Approx. 50g(approx. 30g)
