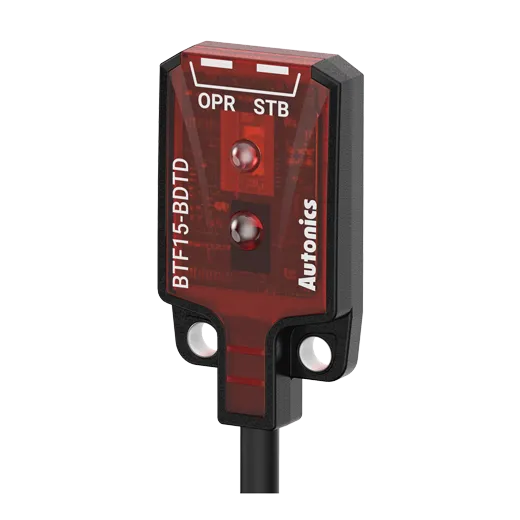

Autonics BTF Series BTF15-BDTD

List Price:

$98.00

/each

Product Description

Autonics Photoelectric Sensors, model BTF15-BDTD, from the BTF Series product line.

Sensing type: BGS reflective type
Sensing distance: 1 to 15mm
Sensing target: Opaque, Translucent material(min. sensing target: non-illuminated objects of Ø0.2mm)
Light source: Red LED(650nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 20mA
Sensitivity adjustment: -
Operation mode: Dark ON
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø2.5, 2m)
Environment_Ambient illumination: Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 55℃, storage: -40 to 70℃
Protection structure: IP67
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 5% at sensing distance
Material: Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,</br>bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
Accessories: Fixing bracket, M2 bolt: 2
Weight: Approx. 40g (approx. 25g)
