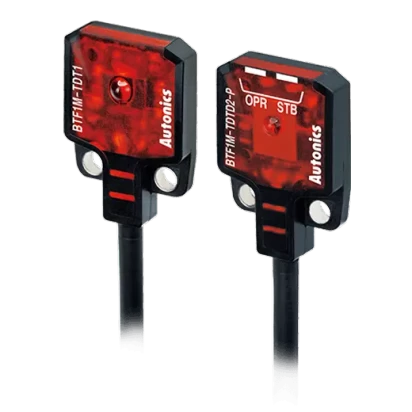

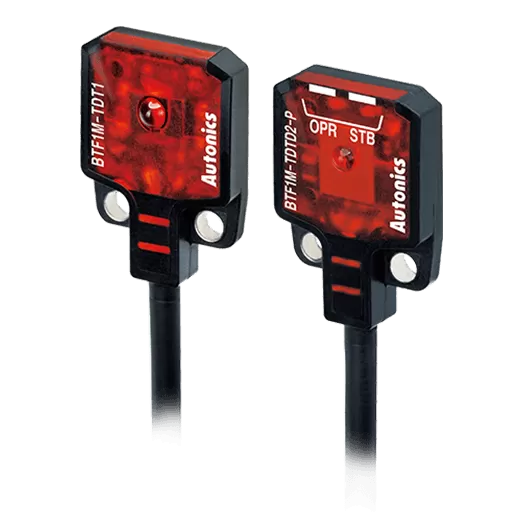

Autonics BTF Series BTF1M-TDTD-P
Part Number #
AUT1049393

Autonics BTF Series BTF1M-TDTD-P

List Price:
$98.00
/each
Product Description

Autonics Photoelectric Sensors, model BTF1M-TDTD-P, from the BTF Series product line.

Specifications

  • Sensing type: Through-beam type
  • Sensing distance: 1m
  • Sensing target: Opaque material of min. Ø2mm
  • Light source: Red LED(650nm)
  • Response time: Max. 1ms
  • Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
  • Current consumption: Emitter/Receiver: Max. 20mA
  • Sensitivity adjustment: -
  • Operation mode: Dark ON
  • Control output: PNP open collector
  • Timer function: -
  • Connection type: Cable type(Ø2.5, 2m)
  • Environment_Ambient illumination: Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
  • Environment_Ambient temperature: -25 to 55℃, storage: -40 to 70℃
  • Protection structure: IP67
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Hysteresis(distance): -
  • Material: Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,</br>bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304)
  • Accessories: Fixing bracket, M2 bolt: 4
  • Weight: Approx. 70g (approx. 40g)
