Autonics BUP Series BUP-50

List Price:

$75.00

/each

Product Description

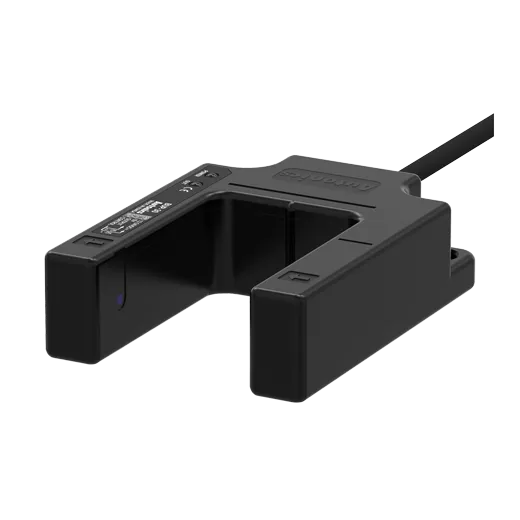

Autonics Photoelectric Sensors, model BUP-50, from the BUP Series product line.

Sensing type: Through-beam type
Sensing Channel: 1-channel
Sensing distance: 50mm
Sensing target: Opaquematerial of min. Ø4mm
Light source: Infrared LED(940nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Fixed
Operation mode: Light ON/Dark ON(set by control wire)
Control output: NPN open collector
Timer function: -
Connection type: Cable type(Ø4, 2m)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 65℃, storage: -25 to 70℃
Protection structure: IP66
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Material: Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Accessories: -
Weight: Approx. 115g
