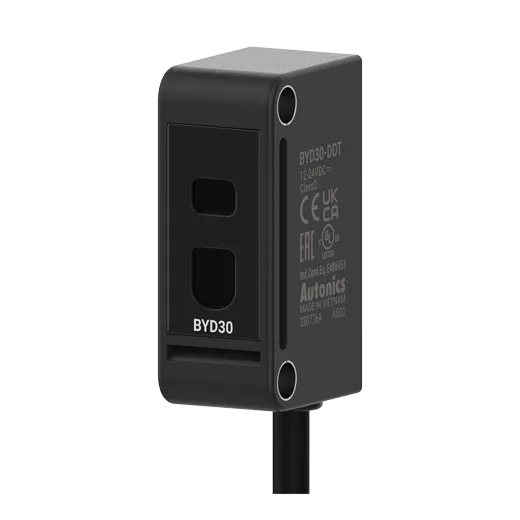

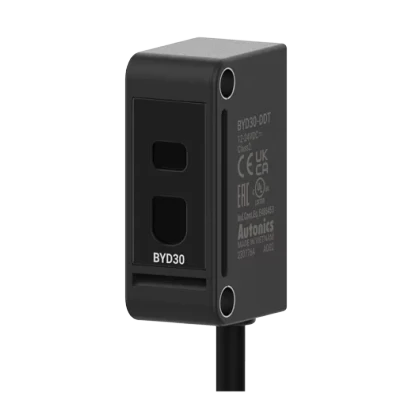

Autonics BYD Series BYD30-DDT
Part Number #
AUT1049460

Autonics BYD Series BYD30-DDT

List Price:
$56.00
/each
Product Description

Autonics Photoelectric Sensors, model BYD30-DDT, from the BYD Series product line.

Specifications

  • Sensing type: Convergent reflective type
  • Sensing distance: 10 to 30mm
  • Sensing target: Opaque, Translucent material
  • Response time: Operation: Max. 3ms, Return: Max. 100ms
  • Light source: Infrared LED
  • Sensitivity adjustment: -
  • Timer function: -
  • Operation mode: Light ON
  • Weight: Approx. 75g(approx. 38g)
  • Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
  • Current consumption: Max. 35mA
  • Control output: NPN open collector
  • Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
  • Environment_Ambient temperature: -20 to 65℃, storage: -25 to 70℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Protection structure: IP64
  • Connection type: Cable type(Ø3.5, 2m)
  • Material: Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
