Part Number #
CKD1063018

C1000-8G-W-F1LNT

List Price:
$119.00
/each
Product Description

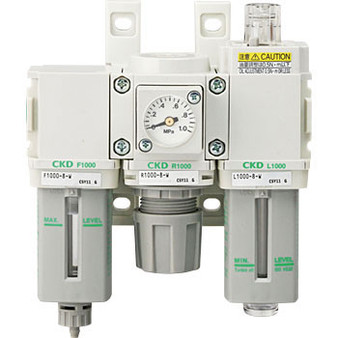

CKD space-saving F.R.L. combination integrating an air filter, regulator, and lubricator for compressed-air preparation. Its modular construction supports compact installation and straightforward maintenance.

Features

  • Filter/auto-drain with manual override (NC: No exhaust when not pressurized)
  • 5um Element
  • Pressure Range: 0.05-0.35MPa
  • Bowl Material: Polycarbonate
  • Pressure Relief Option: Non-Relief
  • Flow Direction: Standard (left -> right)
  • Pressure Gauge Option: No pressure gauge (gauge port (1/4) sealed)
  • Port Size/Thread: G1/4

Downloadable Materials

Download the full CKD C-series FRL manufacturer catalog (PDF)

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

CKD space-saving F.R.L. combination integrating an air filter, regulator, and lubricator for compressed-air preparation. Its modular construction supports compact installation and straightforward maintenance.

Features

  • Filter/auto-drain with manual override (NC: No exhaust when not pressurized)
  • 5um Element
  • Pressure Range: 0.05-0.35MPa
  • Bowl Material: Polycarbonate
  • Pressure Relief Option: Non-Relief
  • Flow Direction: Standard (left -> right)
  • Pressure Gauge Option: No pressure gauge (gauge port (1/4) sealed)
  • Port Size/Thread: G1/4

Downloadable Materials

Download the full CKD C-series FRL manufacturer catalog (PDF)
