C8000-25-W-CFF1M1QLT8X1

List Price:

$445.50

/each

Product Description

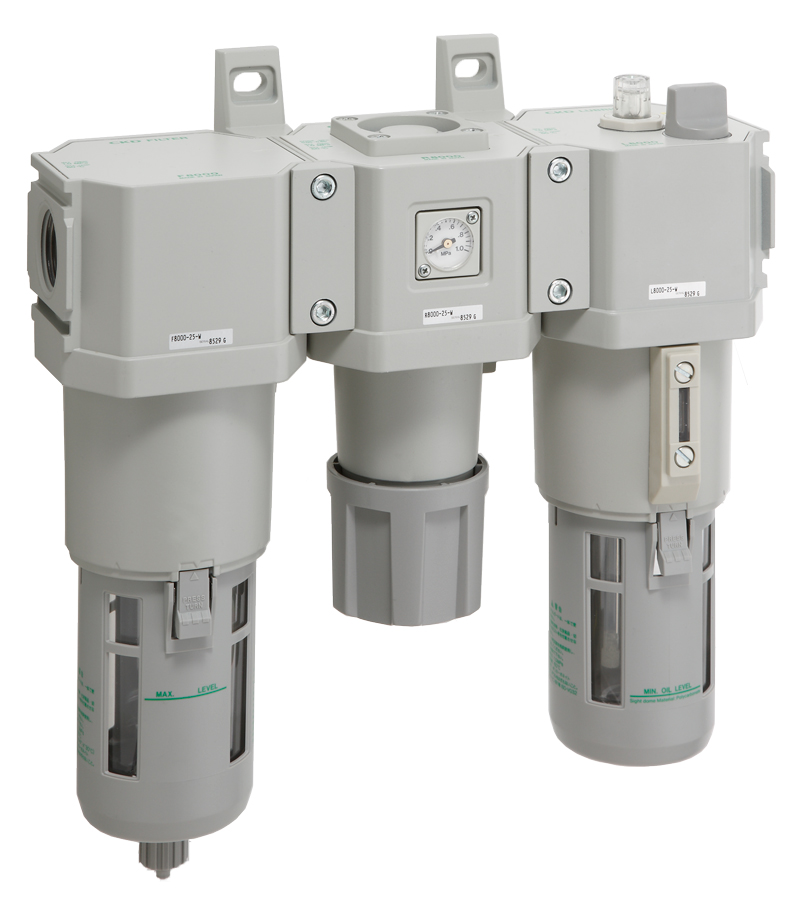

CKD space-saving F.R.L. combination integrating an air filter, regulator, and lubricator for compressed-air preparation. Its modular construction supports compact installation and straightforward maintenance.

Features

Filter/large auto-drain with manual override (NC: No exhaust when not pressurize
Bowl Type: Metal with manual drain cock
Element: 5um (standard)
Pressure Range: 0.05-0.35MPa
Pressure Relief Option: With relief mechanism
Gauge Option: Pressure gauge ready (gauge port (1/4) left open)
Flow Direction: Reverse flow (right -> left)
Display Unit: MPa display (Rc thread)
Port Size/Thread: Rc1

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Features

Filter/large auto-drain with manual override (NC: No exhaust when not pressurize
Bowl Type: Metal with manual drain cock
Element: 5um (standard)
Pressure Range: 0.05-0.35MPa
Pressure Relief Option: With relief mechanism
Gauge Option: Pressure gauge ready (gauge port (1/4) left open)
Flow Direction: Reverse flow (right -> left)
Display Unit: MPa display (Rc thread)
Port Size/Thread: Rc1
