C8000-25G-W-FFQNT8X1

List Price:

$417.40

/each

Product Description

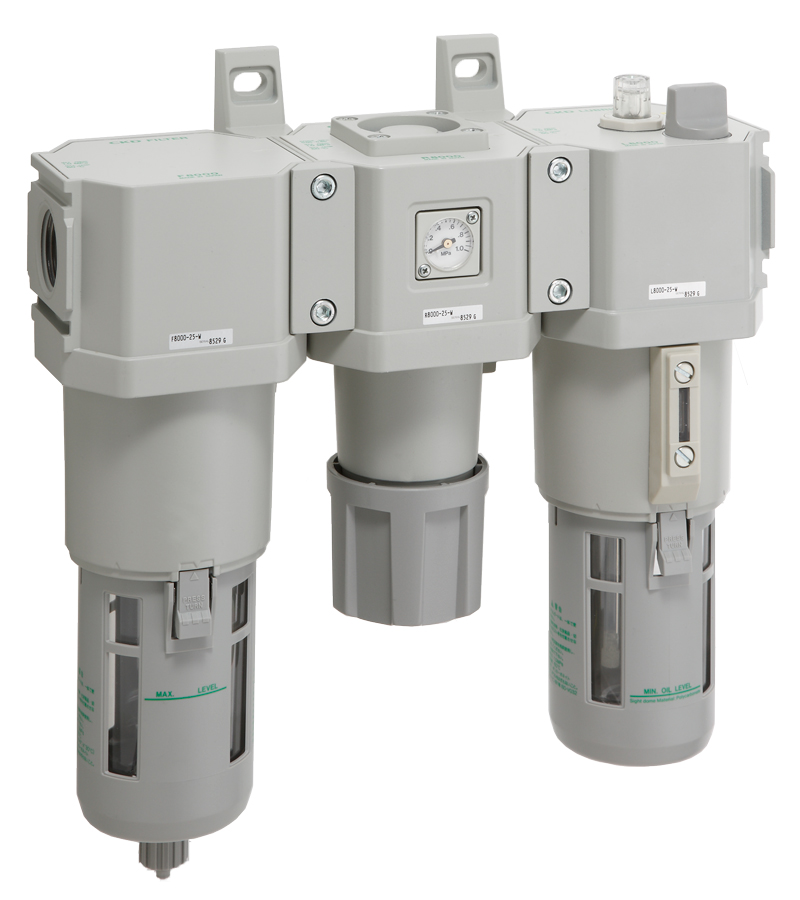

CKD space-saving F.R.L. combination integrating an air filter, regulator, and lubricator for compressed-air preparation. Its modular construction supports compact installation and straightforward maintenance.

Features

Filter/large auto-drain with manual override (NO: Exhaust when not pressurized)
Bowl Type: Polycarbonate
Element: 5um (standard)
Pressure Range: 0.05-0.85MPa
Pressure Relief Option: Non-relief
Gauge Option: Pressure gauge ready (gauge port (1/4) left open)
Flow Direction: Reverse flow (right -> left)
Display Unit: Bar display (G thread)
Port Size/Thread: G1

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Features

Filter/large auto-drain with manual override (NO: Exhaust when not pressurized)
Bowl Type: Polycarbonate
Element: 5um (standard)
Pressure Range: 0.05-0.85MPa
Pressure Relief Option: Non-relief
Gauge Option: Pressure gauge ready (gauge port (1/4) left open)
Flow Direction: Reverse flow (right -> left)
Display Unit: Bar display (G thread)
Port Size/Thread: G1

Downloadable Materials
