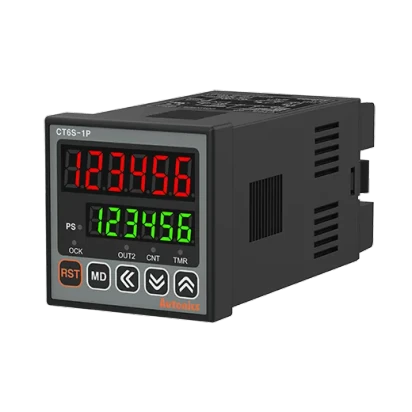

Autonics CT Series CT6S-1P4

List Price:

$140.00

/each

Product Description

Autonics Counters, model CT6S-1P4, from the CT Series product line.

Display method: 6-digit 7-segment LED
Operation method: Counter: Count up, Count down, Count up/down</br>Timer: Count up, Count down
Terminal: Terminal block
Output Operation: SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply: 100-240VAC~ 50/60Hz
Time operation: POWER ON START</br>SIGNAL ON START
External Power Supply: Max. 12VDC @(=) ±10%, 100mA
Signal Input Method: Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed: 1, 30, 1k, 5k, 10k [cps]
Min. signal Width: 1ms/20ms
Memory Protection: Approx. 10 years
Setting range: 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type: 1-stage preset
Control output_Relay: SPDT (1c): 1
Control output_NPN open collector: 1
Communication output: -
Protection structure: IP65(front panel)
Counter_Counting range: -99999 to 999999
Counter_Scale: Decimal point up to fifth digit
Counter_Min. input signal width: RESET: Selectable 1ms/20ms
Timer_Min. input signal width: INA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 212g (approx. 159g)
