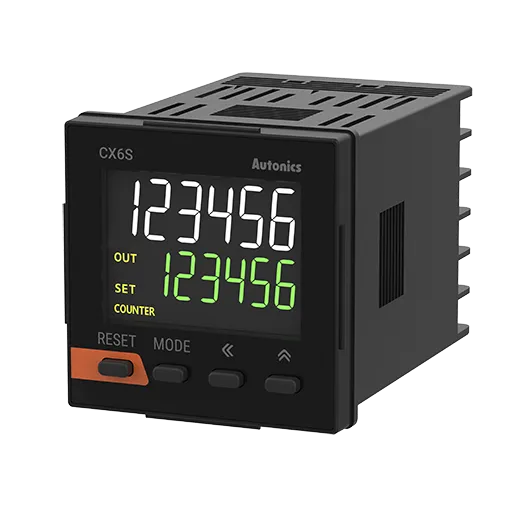

Autonics CX Series CX6S-1P2F

List Price:

$162.00

/each

Product Description

Autonics Counters, model CX6S-1P2F, from the CX Series product line.

Display method: Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCDSetting value display part- 6-digit 7-segment LCD
Operation method: Counter: Count up, Count down, Count up/downTimer: Count up, Count down
Terminal: Terminal block
Output Operation: SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY
Power supply: 24VAC~ 50/60Hz, 24-48VDC @(=)
Time operation: POWER ON STARTSIGNAL ON START
External Power Supply: -
Signal Input Method: Free voltage input
Max. Counting Speed: 20 [cps]
Min. signal Width: 25ms
Memory Protection: Approx. 10 years
Setting range: 0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour
Control output_Type: 1-stage preset
Control output_Relay: SPDT (1c): 1
Control output_NPN open collector: -
Protection structure: IP50(front panel)
Counter_Counting range: -99999 to 999999
Counter_Scale: Decimal point up to fifth digit
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 154g(approx. 109g)
