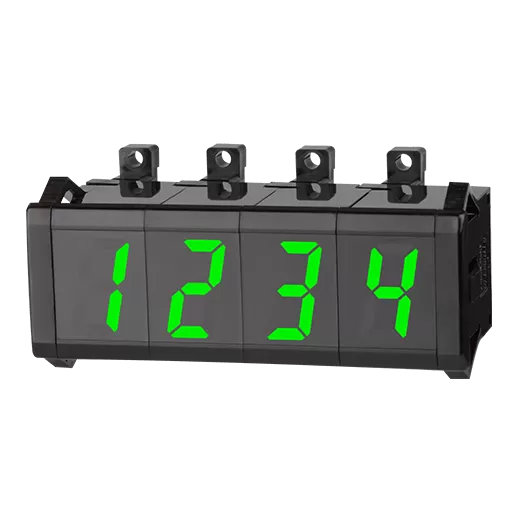

Autonics D1SA Series D1SA-GN

List Price:

$39.00

/each

Product Description

Autonics Display Units, model D1SA-GN, from the D1SA Series product line.

Input method: Serial input or Parallel(static/dynamic parallel) input
Input logic: Positive logic(PNP), Negative logic(NPN)
Display method: 7-segment LED
Display color: Green
Display characters: Decimal: 0 to 9, dot</br>Hexadecimal: 0 to 9, A to F, dot</br>(set by switch)
Character size: W11×H22mm
Current consumption: Max. 35mA
Max. Connections: ∞
Power supply: 12-24VDC @(=)
Environment_Ambient temperature: 0 to 60℃, storage: -10 to 85℃
Environment_Ambient humidity: 35 to 85%RH
Accessories: Connector(CT-10S)
Weight: ≈ 16g (≈ 131g)
