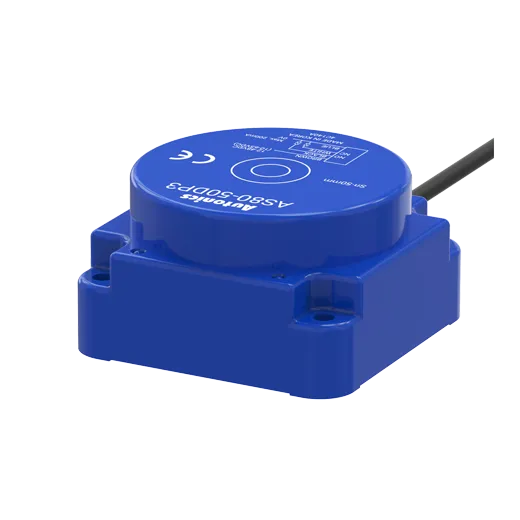

Autonics AS Series AS80-50DN3

Autonics AS Series AS80-50DN3

Part Number #

AUT1049870

Autonics AS Series AS80-50DN3

List Price:

$170.00

/each

Product Description

Autonics Inductive Proximity Sensors, model AS80-50DN3, from the AS Series product line.

Specifications

Wire type and power: DC 4-wire type 12-48VDC @(=)
Sensing side size: Frame size 80mm
Sensing distance: 50mm
Standard sensing target: 150×150×1mm(iron)
Response frequency: 30Hz
Current specification: Current consumption: Max. 20mA
Control output: NPN Normally Open+Normally Closed
Sensing type: Upper sensing type
Material: -
Protection structure: IP67(IEC standard)
Different frequency: -
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 15% of sensing distance
Weight: Approx. 470g

Downloadable Materials
