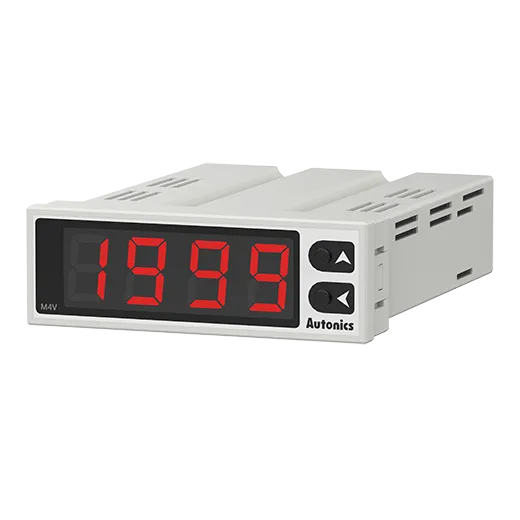

Autonics M4V Series M4V

List Price:

$113.00

/each

Product Description

Autonics Digital Panel Meters, model M4V, from the M4V Series product line.

Display method: 4-digit 7-segment LED
Character height: 14mm
Max. display Range: -999 to 9999
Measurement: DC voltage, DC current
Input specification: 0-2V, 1-5V, 0-10V</br>0-1mA, 4-20mA
AC Measurement: -
Power Factor Display: -
Power supply: 12-24VDC @(=)
Output_Main Output(Comparative Value): Indicator
Output_Sub Output(Display Value): -
Max. allowable input: 110% of measurment input
Display accuracy: 0 to 50℃: F.S. ±0.2% rdg ±1-digit</br>-10 to 0℃: F.S. ±0.3% rdg ±1-digit
Display cycle: 500ms
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 83g
