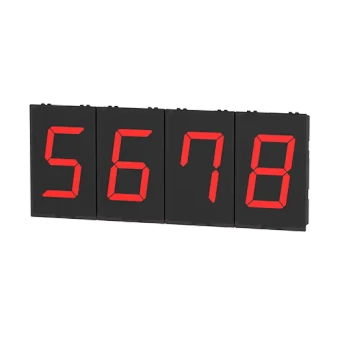

Autonics DS/DA Series DS60-RP

List Price:

$83.00

/each

Product Description

Autonics Display Units, model DS60-RP, from the DS/DA Series product line.

Input method: Parallel(dynamic parallel 1/2) input
Input logic: Positive logic(PNP), Negative logic(NPN)
Display method: 7-segment LED
Display color: Red
Display characters: Displays 64 types of character and sign(0 to 9, A to Z, 27 signs, dot)
Character size: W33.6×H60mm
Current consumption: Max. 65mA
Max. Connections: Dynamic Parallel 1(4bit): 6, Dynamic Parallel 1(6bit): 4, Dynamic Parallel 2(6bit): 24
Power supply: 12-24VDC @(=)
Max. Clock: dynamic parallel 1: Max. 3kHz, dynamic parallel 2: Max. 1.5kHz
Input resistance: 20kΩ
Input level: High: 4.5-24VDC @(=), low: 0-1.2VDC @(=)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories_Basic unit: Connector: 1
Accessories_Expansion unit: -
Protection structure: IP40(front panel)
Weight: Approx. 110g(approx. 60g)
