Autonics E20S Series E20S2-360-3-N-5-R
Part Number #
AUT1050268

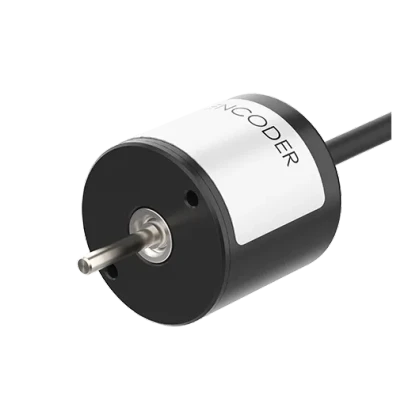

Autonics E20S Series E20S2-360-3-N-5-R

List Price:
$192.00
/each
Product Description

Autonics Rotary Encoders, model E20S2-360-3-N-5-R, from the E20S Series product line.

Specifications

  • Shaft outer diameter: Ø2mm
  • Max. response frequency: 100kHz
  • Max. allowable revolution: 6000rpm
  • Starting torque: Max. 5gf.cm(max. 0.00049N.m)
  • Resolution: 360P/R
  • Output phase: A, B, Z
  • Control output: NPN open collector
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial cable type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -20 to 80℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø2mm coupling
  • Weight: Approx. 35g

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model E20S2-360-3-N-5-R, from the E20S Series product line.

Specifications

  • Shaft outer diameter: Ø2mm
  • Max. response frequency: 100kHz
  • Max. allowable revolution: 6000rpm
  • Starting torque: Max. 5gf.cm(max. 0.00049N.m)
  • Resolution: 360P/R
  • Output phase: A, B, Z
  • Control output: NPN open collector
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial cable type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -20 to 80℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø2mm coupling
  • Weight: Approx. 35g
