Autonics E30S Series E30S4-3000-3-T-24-C
Part Number #
AUT1050308

Autonics E30S Series E30S4-3000-3-T-24-C

List Price:
$223.00
/each
Product Description

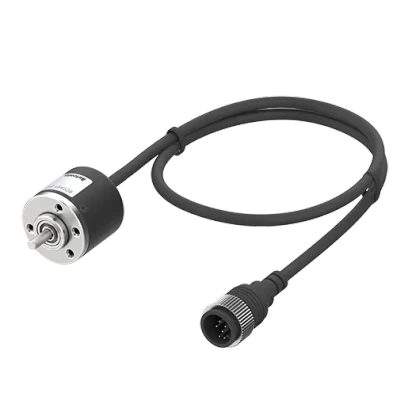

Autonics Rotary Encoders, model E30S4-3000-3-T-24-C, from the E30S Series product line.

Specifications

  • Shaft outer diameter: Ø4mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 20gf.cm(max. 0.00196N.m)
  • Resolution: 3000P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial cable connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø4mm coupling
  • Weight: Approx. 80g

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model E30S4-3000-3-T-24-C, from the E30S Series product line.

Specifications

  • Shaft outer diameter: Ø4mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 20gf.cm(max. 0.00196N.m)
  • Resolution: 3000P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial cable connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø4mm coupling
  • Weight: Approx. 80g

Downloadable Materials
