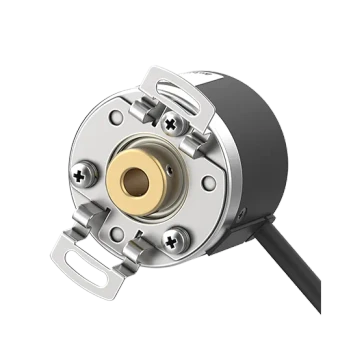

Autonics E40H Series E40H8-1024-3-V-5

Autonics E40H Series E40H8-1024-3-V-5

Part Number #

AUT1050483

Autonics E40H Series E40H8-1024-3-V-5

List Price:

$229.00

/each

Product Description

Autonics Rotary Encoders, model E40H8-1024-3-V-5, from the E40H Series product line.

Specifications

Shaft inner diameter: Ø8mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 50gf.cm(max. 0.0049N.m)
Resolution: 1024P/R
Output phase: A, B, Z
Control output: Voltage
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Bracket
Weight: Approx. 120g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Rotary Encoders, model E40H8-1024-3-V-5, from the E40H Series product line.

Specifications

Shaft inner diameter: Ø8mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 50gf.cm(max. 0.0049N.m)
Resolution: 1024P/R
Output phase: A, B, Z
Control output: Voltage
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Bracket
Weight: Approx. 120g
