Autonics E40S Series E40S6-1000-6-L-5
Part Number #
AUT1050359

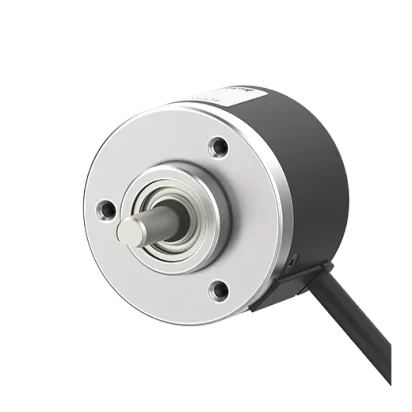

Autonics E40S Series E40S6-1000-6-L-5

List Price:
$229.00
/each
Product Description

Autonics Rotary Encoders, model E40S6-1000-6-L-5, from the E40S Series product line.

Specifications

  • Shaft outer diameter: Ø6mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 40gf.cm(max. 0.00392N.m)
  • Resolution: 1000P/R
  • Output phase: A, @(A^), B, @(B^), Z, @(Z^)
  • Control output: Line Driver
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial cable type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø6mm coupling standard, Ø8mm coupling(sold separately)
  • Weight: Approx. 120g

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model E40S6-1000-6-L-5, from the E40S Series product line.

Specifications

  • Shaft outer diameter: Ø6mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 40gf.cm(max. 0.00392N.m)
  • Resolution: 1000P/R
  • Output phase: A, @(A^), B, @(B^), Z, @(Z^)
  • Control output: Line Driver
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial cable type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø6mm coupling standard, Ø8mm coupling(sold separately)
  • Weight: Approx. 120g

Downloadable Materials
