Autonics E40S Series E40S6-2048-6-L-5

Autonics E40S Series E40S6-2048-6-L-5

Part Number #

AUT1050365

Autonics E40S Series E40S6-2048-6-L-5

List Price:

$244.00

/each

Product Description

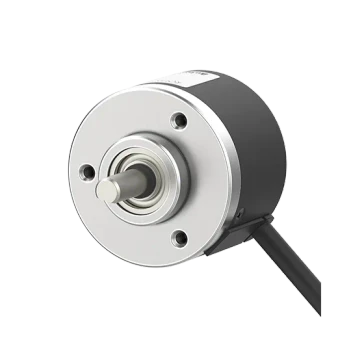

Autonics Rotary Encoders, model E40S6-2048-6-L-5, from the E40S Series product line.

Specifications

Shaft outer diameter: Ø6mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 2048P/R
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Control output: Line Driver
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø6mm coupling standard, Ø8mm coupling(sold separately)
Weight: Approx. 120g
