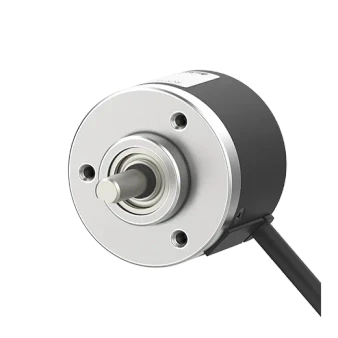

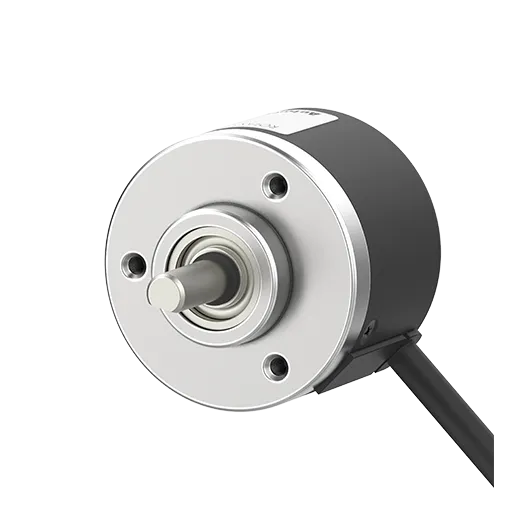

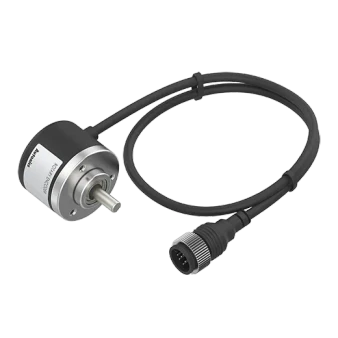

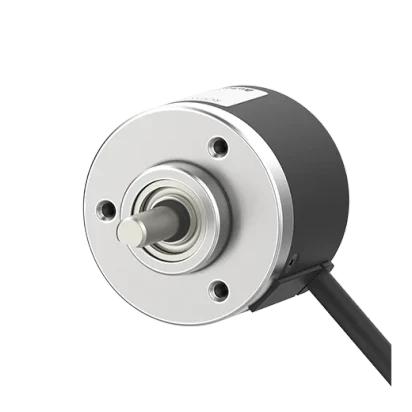

Autonics E40S Series E40S6-500-3-V-5

Autonics E40S Series E40S6-500-3-V-5

Part Number #

AUT1050341

Autonics E40S Series E40S6-500-3-V-5

List Price:

$196.00

/each

Product Description

Autonics Rotary Encoders, model E40S6-500-3-V-5, from the E40S Series product line.

Specifications

Shaft outer diameter: Ø6mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 500P/R
Output phase: A, B, Z
Control output: Voltage
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø6mm coupling standard, Ø8mm coupling(sold separately)
Weight: Approx. 120g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Rotary Encoders, model E40S6-500-3-V-5, from the E40S Series product line.

Specifications

Shaft outer diameter: Ø6mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 500P/R
Output phase: A, B, Z
Control output: Voltage
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø6mm coupling standard, Ø8mm coupling(sold separately)
Weight: Approx. 120g
