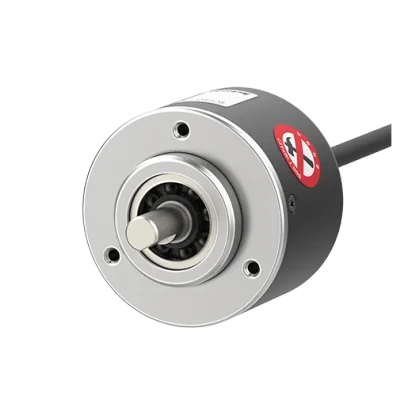

Autonics E50S Series E50S8-2048-6-L-24

Autonics E50S Series E50S8-2048-6-L-24

Part Number #

AUT1050760

Autonics E50S Series E50S8-2048-6-L-24

List Price:

$274.00

/each

Product Description

Autonics Rotary Encoders, model E50S8-2048-6-L-24, from the E50S Series product line.

Specifications

Shaft outer diameter: Ø8mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 70gf.cm(max. 0.00686N.m)
Resolution: 2048P/R
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Control output: Line Driver
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50 (IEC standard)
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø8mm coupling, Bracket
Weight: Approx. 363g(approx. 275g)
