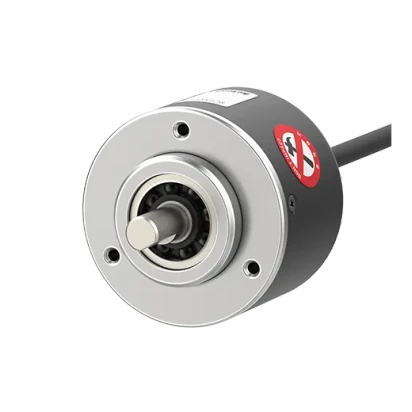

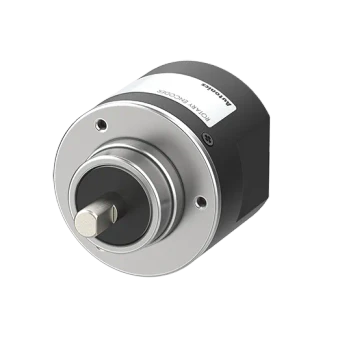

Autonics E50S Series E50S8-500-3-T-5

Autonics E50S Series E50S8-500-3-T-5

Part Number #

AUT1050669

Autonics E50S Series E50S8-500-3-T-5

List Price:

$194.00

/each

Product Description

Autonics Rotary Encoders, model E50S8-500-3-T-5, from the E50S Series product line.

Specifications

Shaft outer diameter: Ø8mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 70gf.cm(max. 0.00686N.m)
Resolution: 500P/R
Output phase: A, B, Z
Control output: Totem pole
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50 (IEC standard)
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø8mm coupling, Bracket
Weight: Approx. 363g(approx. 275g)
