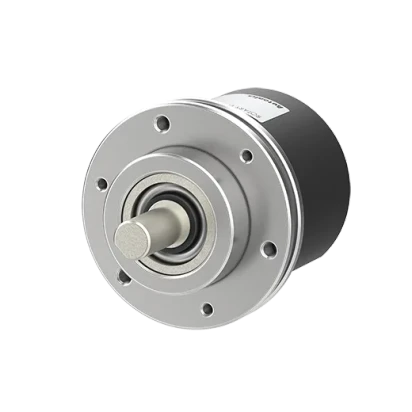

Autonics E58SC Series E58SC10-3000-3-N-5-CR
Part Number #
AUT1050810

Autonics E58SC Series E58SC10-3000-3-N-5-CR

List Price:
$296.00
/each
Product Description

Autonics Rotary Encoders, model E58SC10-3000-3-N-5-CR, from the E58SC Series product line.

Specifications

  • Shaft outer diameter: Ø10mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 40gf.cm(max. 0.00392N.m)
  • Resolution: 3000P/R
  • Output phase: A, B, Z
  • Control output: NPN open collector
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø10mm coupling, Bracket
  • Weight: Approx. 340g(Approx. 230g)

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model E58SC10-3000-3-N-5-CR, from the E58SC Series product line.

Specifications

  • Shaft outer diameter: Ø10mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 40gf.cm(max. 0.00392N.m)
  • Resolution: 3000P/R
  • Output phase: A, B, Z
  • Control output: NPN open collector
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø10mm coupling, Bracket
  • Weight: Approx. 340g(Approx. 230g)

Downloadable Materials
