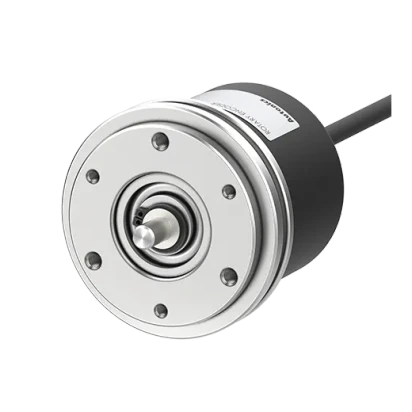

Autonics E58SS Series E58SS6-2500-6-L-5

Autonics E58SS Series E58SS6-2500-6-L-5

Part Number #

AUT1050820

Autonics E58SS Series E58SS6-2500-6-L-5

List Price:

$318.00

/each

Product Description

Autonics Rotary Encoders, model E58SS6-2500-6-L-5, from the E58SS Series product line.

Specifications

Shaft outer diameter: Ø6mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 2500P/R
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Control output: Line Driver
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø6mm coupling, Bracket
Weight: Approx. 395g(approx. 285g)
