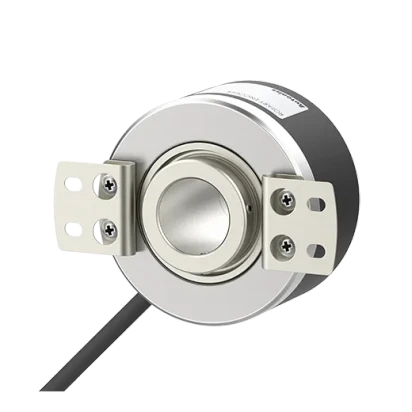

Autonics E60H Series E60H20-1024-3-T-24

Autonics E60H Series E60H20-1024-3-T-24

Part Number #

AUT1050841

Autonics E60H Series E60H20-1024-3-T-24

List Price:

$351.00

/each

Product Description

Autonics Rotary Encoders, model E60H20-1024-3-T-24, from the E60H Series product line.

Specifications

Shaft inner diameter: Ø20mm
Max. response frequency: 300kHz
Max. allowable revolution: 6000rpm
Starting torque: Max. 150gf.cm(max. 0.0147N.m)
Resolution: 1024P/R
Output phase: A, B, Z
Control output: Totem pole
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Bracket: 2
Weight: Approx. 391g(approx. 330g)
