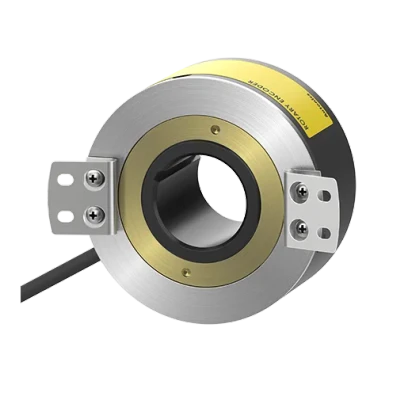

Autonics E80H Series E80H30-1024-6-L-5

Autonics E80H Series E80H30-1024-6-L-5

Part Number #

AUT1050876

Autonics E80H Series E80H30-1024-6-L-5

List Price:

$625.00

/each

Product Description

Autonics Rotary Encoders, model E80H30-1024-6-L-5, from the E80H Series product line.

Specifications

Shaft inner diameter: Ø30mm
Max. response frequency: 200kHz
Max. allowable revolution: 3600rpm
Starting torque: Max. 200gf.cm(max. 0.0196N.m)
Resolution: 1024P/R
Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Control output: Line Driver
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Spring bracket
Weight: Approx. 560g
