Autonics E80H Series E80H30-360-3-T-24
Part Number #
AUT1050860

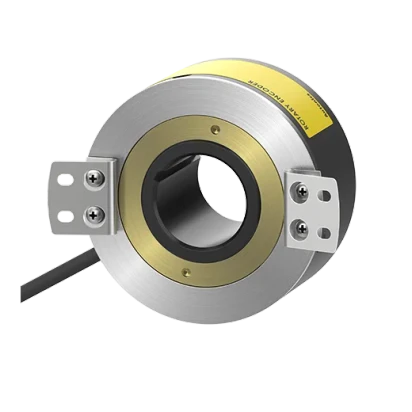

Autonics E80H Series E80H30-360-3-T-24

List Price:
$385.00
/each
Product Description

Autonics Rotary Encoders, model E80H30-360-3-T-24, from the E80H Series product line.

Specifications

  • Shaft inner diameter: Ø30mm
  • Max. response frequency: 200kHz
  • Max. allowable revolution: 3600rpm
  • Starting torque: Max. 200gf.cm(max. 0.0196N.m)
  • Resolution: 360P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial cable type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Spring bracket
  • Weight: Approx. 560g

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model E80H30-360-3-T-24, from the E80H Series product line.

Specifications

  • Shaft inner diameter: Ø30mm
  • Max. response frequency: 200kHz
  • Max. allowable revolution: 3600rpm
  • Starting torque: Max. 200gf.cm(max. 0.0196N.m)
  • Resolution: 360P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial cable type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Spring bracket
  • Weight: Approx. 560g

Downloadable Materials
