Autonics ENA Series ENA-1024-3-T-5
Part Number #
AUT1050903

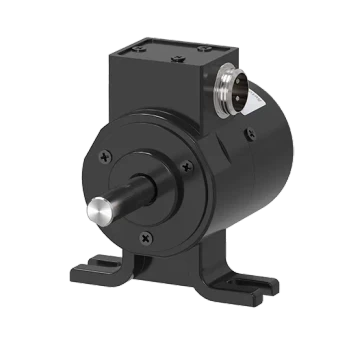

Autonics ENA Series ENA-1024-3-T-5

List Price:
$242.00
/each
Product Description

Autonics Rotary Encoders, model ENA-1024-3-T-5, from the ENA Series product line.

Specifications

  • Shaft outer diameter: Ø10mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 70gf.cm(max. 0.00686N.m)
  • Resolution: 1024P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø10mm coupling, Connector cable
  • Weight: Approx. 345g

Downloadable Materials

Write a Review
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model ENA-1024-3-T-5, from the ENA Series product line.

Specifications

  • Shaft outer diameter: Ø10mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 70gf.cm(max. 0.00686N.m)
  • Resolution: 1024P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Radial connector type
  • Protection structure: IP50
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø10mm coupling, Connector cable
  • Weight: Approx. 345g

Downloadable Materials
