Autonics ENA Series ENA-5000-3-T-24

Autonics ENA Series ENA-5000-3-T-24

Part Number #

AUT1050905

Autonics ENA Series ENA-5000-3-T-24

List Price:

$268.00

/each

Product Description

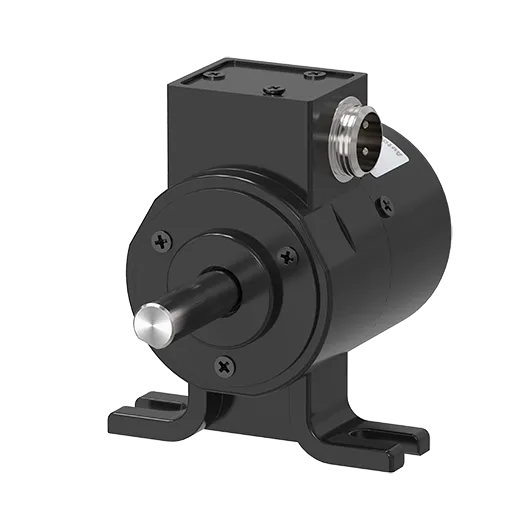

Autonics Rotary Encoders, model ENA-5000-3-T-24, from the ENA Series product line.

Specifications

Shaft outer diameter: Ø10mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 70gf.cm(max. 0.00686N.m)
Resolution: 5000P/R
Output phase: A, B, Z
Control output: Totem pole
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial connector type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø10mm coupling, Connector cable
Weight: Approx. 345g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Rotary Encoders, model ENA-5000-3-T-24, from the ENA Series product line.

Specifications

Shaft outer diameter: Ø10mm
Max. response frequency: 300kHz
Max. allowable revolution: 5000rpm
Starting torque: Max. 70gf.cm(max. 0.00686N.m)
Resolution: 5000P/R
Output phase: A, B, Z
Control output: Totem pole
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Radial connector type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø10mm coupling, Connector cable
Weight: Approx. 345g
