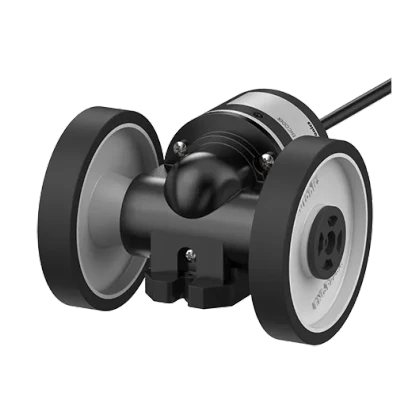

Autonics ENC Series ENC-1-1-N-24

Autonics ENC Series ENC-1-1-N-24

Part Number #

AUT1050920

Autonics ENC Series ENC-1-1-N-24

List Price:

$209.00

/each

Product Description

Autonics Rotary Encoders, model ENC-1-1-N-24, from the ENC Series product line.

Specifications

Max. response frequency: 180kHz
Max. allowable revolution: 5000rpm
Output phase: A, B
Wheel diameter: 250mm
Gear ratio: 0.042361111
Number of pulses: 250
Min. measurement unit: 1mm
Control output: NPN open collector
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Weight: Approx. 494g
