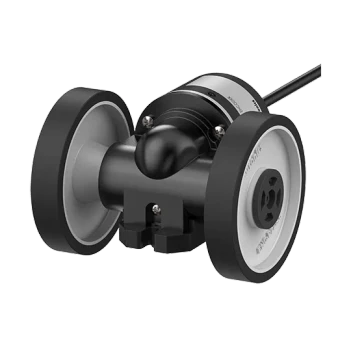

Autonics ENC Series ENC-1-2-V-24

Autonics ENC Series ENC-1-2-V-24

Part Number #

AUT1050928

Autonics ENC Series ENC-1-2-V-24

List Price:

$209.00

/each

Product Description

Autonics Rotary Encoders, model ENC-1-2-V-24, from the ENC Series product line.

Specifications

Max. response frequency: 180kHz
Max. allowable revolution: 5000rpm
Output phase: A, B
Wheel diameter: 250mm
Gear ratio: 0.167361111
Number of pulses: 100
Min. measurement unit: 1cm
Control output: Voltage
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Weight: Approx. 494g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Rotary Encoders, model ENC-1-2-V-24, from the ENC Series product line.

Specifications

Max. response frequency: 180kHz
Max. allowable revolution: 5000rpm
Output phase: A, B
Wheel diameter: 250mm
Gear ratio: 0.167361111
Number of pulses: 100
Min. measurement unit: 1cm
Control output: Voltage
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Weight: Approx. 494g
