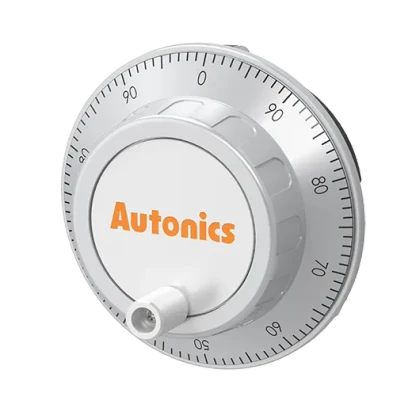

Autonics ENH Series ENH-100-2-L-5

Autonics ENH Series ENH-100-2-L-5

Part Number #

AUT1050943

Autonics ENH Series ENH-100-2-L-5

List Price:

$194.00

/each

Product Description

Autonics Rotary Encoders, model ENH-100-2-L-5, from the ENH Series product line.

Specifications

Max. response frequency: 10kHz
Max. allowable revolution: 200rpm(Normal), 600rpm(Peak)
Starting torque: Max. 1kgf.cm(max. 0.098N.m)
Resolution: 100P/R
Output phase: A, @(A^), B, @(B^)
Click stopper position: Normal "L"
Control output: Line Driver
Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Terminal block
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Weight: Approx. 330g(approx. 260g)

Downloadable Materials
