Autonics ENHP Series ENHP-100-2-T-5
Part Number #
AUT1050958

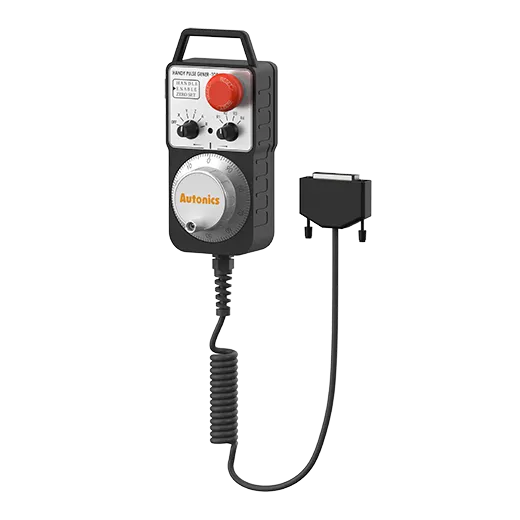

Autonics ENHP Series ENHP-100-2-T-5

List Price:
$669.00
/each
Product Description

Autonics Rotary Encoders, model ENHP-100-2-T-5, from the ENHP Series product line.

Specifications

  • Max. response frequency: 10kHz
  • Max. allowable revolution: 200rpm(Normal), 600rpm(Peak)
  • Starting torque: Max. 1kgf.cm(max. 0.098N.m)
  • Resolution: 100P/R
  • Output phase: A, B
  • Click stopper position: Normal "L"
  • Control output: Totem pole
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: D-SUB connector type
  • Protection structure: IP67
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Weight: Approx. 730g

Downloadable Materials

Write a Review

Out of stock

Request a Quote
  • CAD Model
  • Specifications
Brand:

Autonics Rotary Encoders, model ENHP-100-2-T-5, from the ENHP Series product line.

Specifications

  • Max. response frequency: 10kHz
  • Max. allowable revolution: 200rpm(Normal), 600rpm(Peak)
  • Starting torque: Max. 1kgf.cm(max. 0.098N.m)
  • Resolution: 100P/R
  • Output phase: A, B
  • Click stopper position: Normal "L"
  • Control output: Totem pole
  • Power supply: 5VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: D-SUB connector type
  • Protection structure: IP67
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Weight: Approx. 730g

Downloadable Materials
