Autonics EP50S Series EP50S8-360-1F-P-24

Autonics EP50S Series EP50S8-360-1F-P-24

Part Number #

AUT1050980

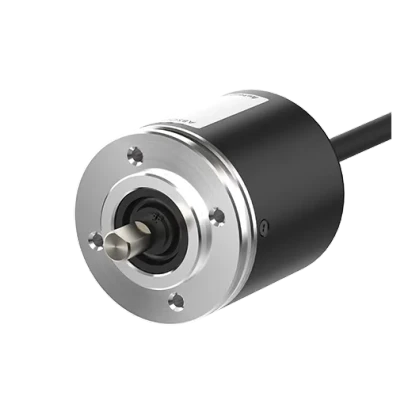

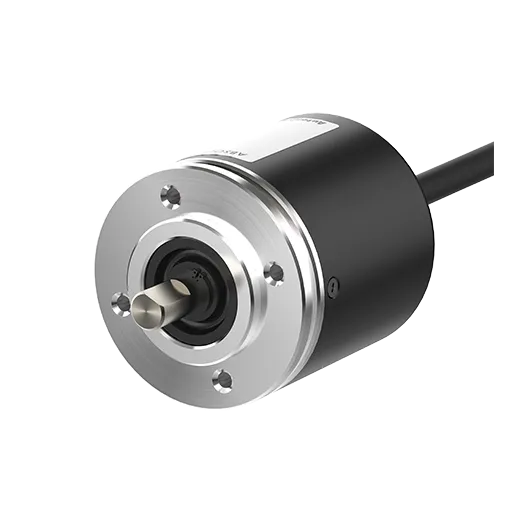

Autonics EP50S Series EP50S8-360-1F-P-24

List Price:

$261.00

/each

Product Description

Autonics Rotary Encoders, model EP50S8-360-1F-P-24, from the EP50S Series product line.

Specifications

Shaft outer diameter: Ø8mm
Max. response frequency: 35kHz
Max. allowable revolution: 3000rpm
Starting torque: Max. 70gf.cm(max. 0.0069N.m)
Resolution: 360P/R
Output code: BCD Code
Rotating direction: CW
Control output: PNP open collector
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP65(IEC standard)
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Bracket, Coupling
Weight: Approx. 482g(approx. 398g)

Downloadable Materials
