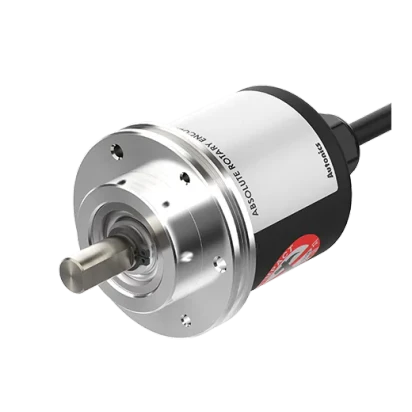

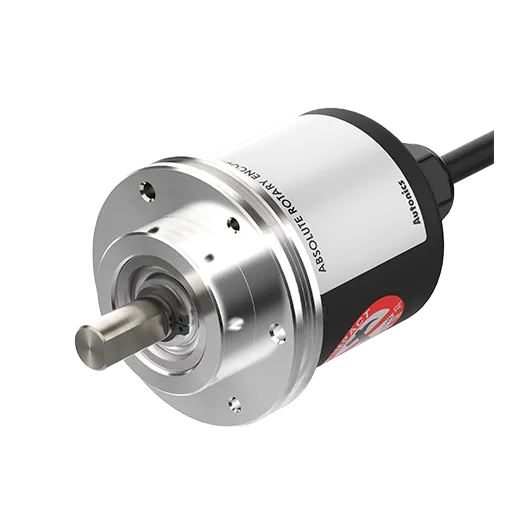

Autonics EP58SC Series EP58SC10-1024-1F-N-24

Autonics EP58SC Series EP58SC10-1024-1F-N-24

Part Number #

AUT1051012

Autonics EP58SC Series EP58SC10-1024-1F-N-24

List Price:

$407.00

/each

Product Description

Autonics Rotary Encoders, model EP58SC10-1024-1F-N-24, from the EP58SC Series product line.

Specifications

Shaft outer diameter: Ø10mm
Max. response frequency: 35kHz
Max. allowable revolution: 3000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 1024P/R
Output code: BCD Code
Rotating direction: CW
Control output: NPN open collector
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø10mm coupling, Fixing bracket
Weight: Approx. 435g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Rotary Encoders, model EP58SC10-1024-1F-N-24, from the EP58SC Series product line.

Specifications

Shaft outer diameter: Ø10mm
Max. response frequency: 35kHz
Max. allowable revolution: 3000rpm
Starting torque: Max. 40gf.cm(max. 0.00392N.m)
Resolution: 1024P/R
Output code: BCD Code
Rotating direction: CW
Control output: NPN open collector
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP50
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Ø10mm coupling, Fixing bracket
Weight: Approx. 435g
