Autonics EPM50S Series EPM50S8-1013-B-S-24

Autonics EPM50S Series EPM50S8-1013-B-S-24

Part Number #

AUT1051028

Autonics EPM50S Series EPM50S8-1013-B-S-24

List Price:

$436.00

/each

Product Description

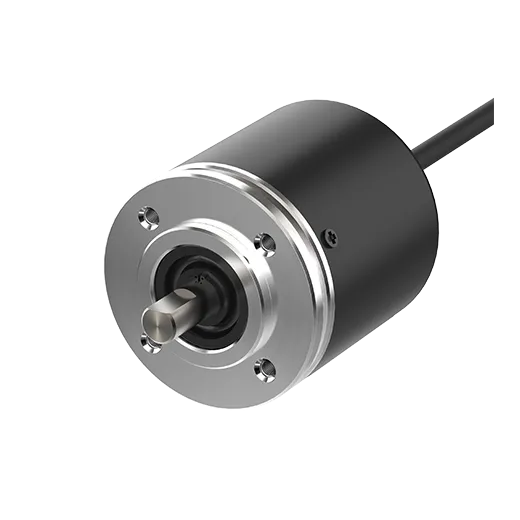

Autonics Rotary Encoders, model EPM50S8-1013-B-S-24, from the EPM50S Series product line.

Specifications

Shaft outer diameter: Ø8mm
Max. response frequency: -
Max. allowable revolution: 3000rpm
Starting torque: Max. 70gf.cm(max. 0.0069N.m)
Resolution: Single-Turn: 1024-division, Multi-Turn: 8192-revolution
Output code: Binary Code
Control output: SSI(synchronous serial interface)
Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type: Axial cable type
Protection structure: IP64
Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
Accessories: Bracket, Coupling
Weight: Approx. 409g(approx. 324g)
